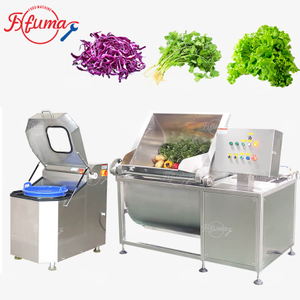

WA-1000 Vegetable Fruit Bubble Spray Washing Cleaning Machine

High spray fruit and vegetable bubble washing machine is specially designed for cleaning fruits and vegetables. It adopts high pressure spray, bubble surfing, drum filtering and ultrasonic vibration cleaning methods to thoroughly clean the dirt on the surface of vegetables and fruits. The machine can also add appropriate amount of fungicide to clean the vegetables and remove pesticide residues.

Availability:

Description

High spray fruit and vegetable bubble washing machine is specially designed for cleaning fruits and vegetables. It adopts high pressure spray, bubble surfing, drum filtering and ultrasonic vibration cleaning methods to thoroughly clean the dirt on the surface of vegetables and fruits. The machine can also add appropriate amount of fungicide to clean the vegetables and remove pesticide residues. The purified water filtered by activated carbon can be recycled, saving 80% of water. Debris removing from the overflow tank, sediment discharge outlet, in order to achieve the purpose of cleaning. The spray type fruit and vegetable bubble cleaning machine is particularly suitable for cleaning fruits and vegetables, and plays an important role in the clean vegetable production line.

Parameter

Size: 2500*900*1140mm

Voltage: 380V

Power: 2.6kw

Capacity: 1000-1500kgs/h

Process Principle

The fruits and vegetables are introduced into the water tank, and they are first flipped in the water under the impact of a bubble water bath, and at the same time, the materials on the floating water surface are washed by high pressure spray to effectively separate the dirt on the vegetable surface. The size of the water flow can be controlled. The cleaned dirt is intercepted by the filter, and the cleaned vegetables are lifted by the conveyor belt to the next process, and sprayed and washed again during the lifting process. During the work, the water supply pipe and the sprinkler pipe always supply water, so that the sewage in the water tank is gradually replaced.

Feature

• The combination of three cleaning methods: bubble surfing, high pressure spraying and ultrasonic vibration, so that vegetables can be thoroughly cleaned in all directions;

• PLC automatic control, high efficiency, large output, saving water and effort;

• There is a water flow adjustment valve next to the machine, which can control the forward speed of the vegetables and is easy to operate;

• The conveyor belt is imported PP mesh, which conforms to food-grade standards and is easy to clean.
