Subtitle: High-efficiency root vegetable cutting machine designed for fast, stable, and precise slicing and shredding of potatoes, carrots, cassava, and other root crops.

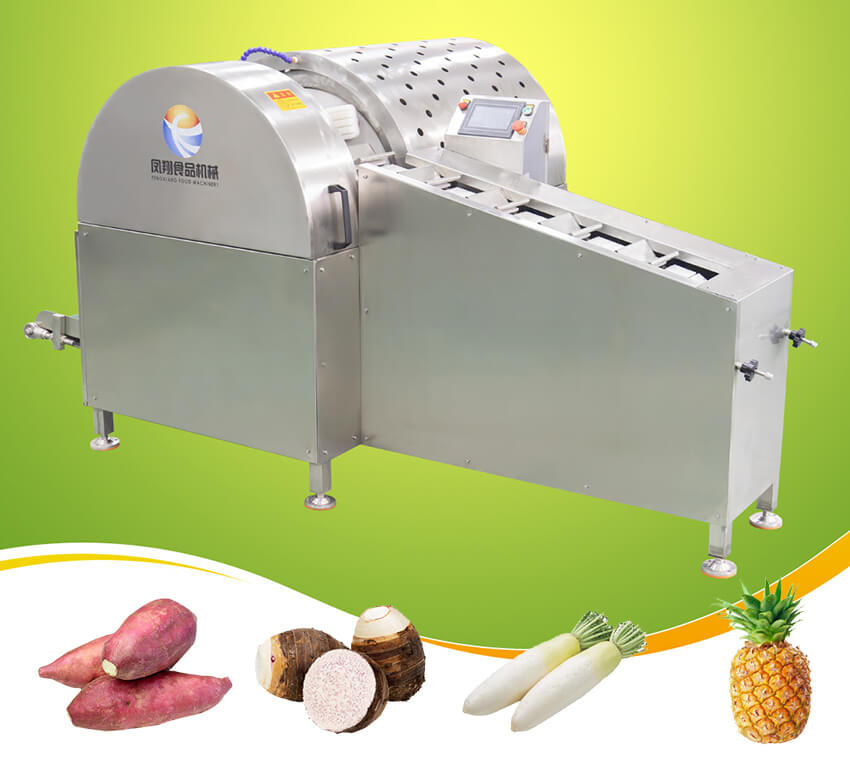

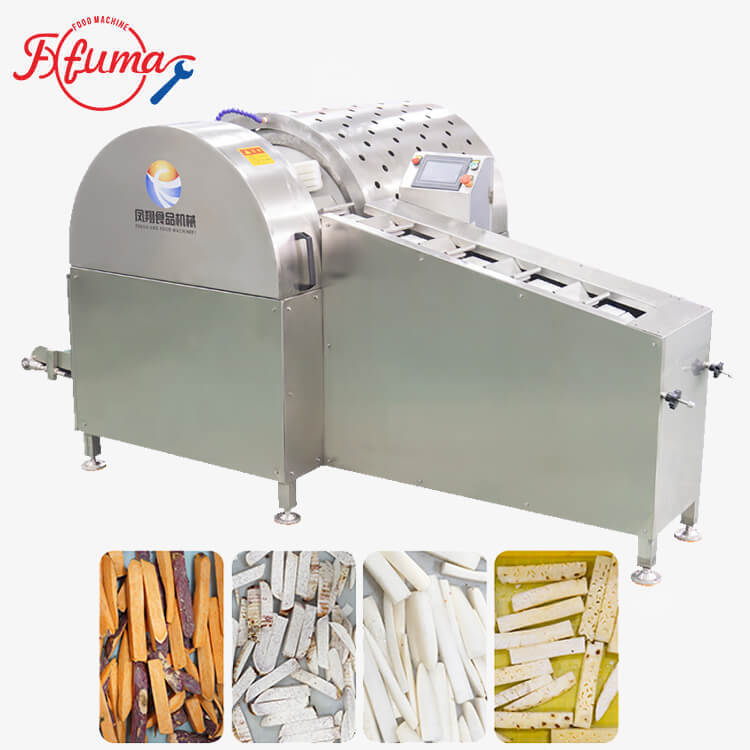

This industrial root vegetable cutting machine is engineered for factories that require reliable and efficient vegetable processing. It delivers uniform slicing and shredding for potatoes, carrots, radishes, cassava, taro, and similar ingredients. The machine provides continuous high output operation, making it ideal for fresh-cut processing lines, frozen food plants, and central kitchens.
| Dimensions | 2050x1640x1190mm |
| Power | 3KW |
| Weight | 350KG |
| Capacity | 100-120 pcs/min |
Chain-Driven Feeding System for Stable Input
The machine uses a heavy-duty chain-driven feeding mechanism that provides stable and continuous material input. This structure ensures consistent cutting pressure, prevents feeding interruptions, and maintains a uniform processing rhythm even when handling hard, dense root vegetables such as potatoes, carrots, cassava, and taro.
Track-Guided Push Plate for Precise Cutting
The guided push plate keeps every piece of produce firmly aligned during feeding. This prevents the vegetable from shifting or rotating, significantly improving cut accuracy and ensuring each slice or shred maintains the same thickness. The result is higher product quality, reduced trimming waste, and better consistency for downstream processes.
High-Throughput Feeding Design
The optimized design reduces spacing between feeding components, allowing more product to enter the cutting zone at once. This boosts overall throughput and increases efficiency for factories requiring large-volume processing. It is especially effective in fresh-cut production lines and frozen vegetable plants.
Uniform Cutting for Better Processing Results
Thanks to the combined chain-drive and guided-feed structure, every slice or shred maintains consistent dimensions. Uniform cutting improves frying, blanching, drying, and seasoning performance in downstream processing and enhances final product appearance.
Suitable for a Wide Range of Root Vegetables
The machine is engineered to process dense and fibrous vegetables such as potatoes, carrots, radishes, cassava, taro, sweet potatoes and more. It is ideal for facilities that handle multiple product types but require a stable, unified cutting system.
![]() | ![]() |
This vegetable cutting machine is widely used in food processing plants, fresh-cut vegetable factories, catering centers, and ready-meal production lines.
Carrot shredding for salads and ready meals
Potato slicing for frying, freezing, or packaging
Cassava and taro strips for ready-to-cook products
| Fault | Possible Cause | Solution |
|---|---|---|
| Poor pushing/cutting performance | The cutting surface is not smooth | Blade worn; sharpen or replace |
| Motion not synchronized | Check whether the sensor is loose | |
| The reciprocating mechanism is not moving | Servo controller overload protection — remove overload and reset | |
| The conveyor belt is running too fast | Adjust to the appropriate speed | |
| Open circuit | Inspect wiring and eliminate the issue | |
| The conveyor belt is not transmitting | Sprocket/chain too loose or detached | Replace or reassemble chain/sprocket |
| Speed controller damaged | Replace the speed controller | |
| Motor damaged | Replace motor | |
| Open circuit | Inspect wiring and eliminate the issue | |
| The reciprocating mechanism is not moving | Capacitor damaged | Replace capacitor |
| Motor damaged | Replace motor | |
| Moving components damaged | Repair or replace damaged components | |
| Weak water spray | Water pump phase sequence reversed | Check and correct the phase sequence |
| Water pump inlet blocked | Clean the inlet and remove the blockage | |
| Nozzle clogged with debris | Inspect and clean nozzles |
